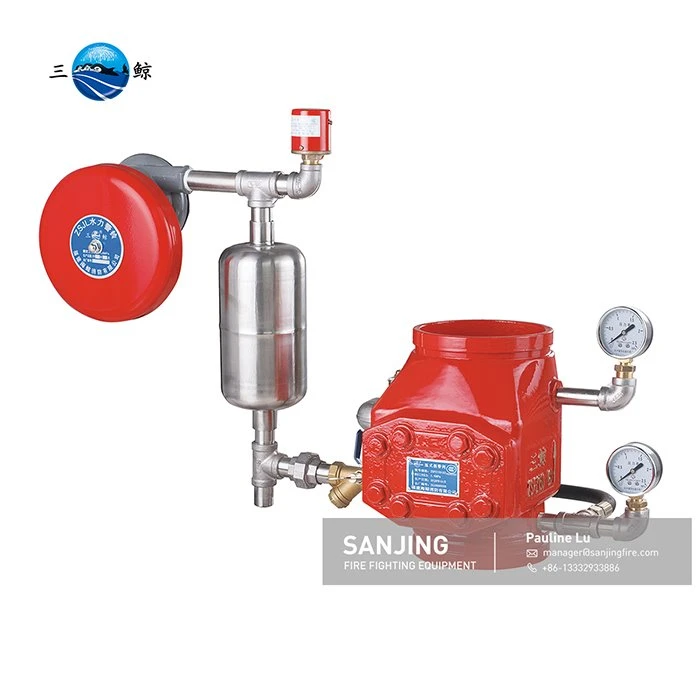

Groove Wet Alarm Valve
SANJING Tswb Check Valve yog lub hauv paus tseem ceeb hauv cov yeeb nkab ntub dej tua hluav taws. Nws ua haujlwm rau ob lub hom phiaj uas tiv thaiv kev thim rov qab ntawm cov dej (tsis rov qab), kuj tseem muab rau kev siv dej lub cev muaj zog.
SANJING Tswb Check Valve yog lub hauv paus tseem ceeb hauv cov yeeb nkab ntub dej tua hluav taws. Nws ua haujlwm rau ob lub hom phiaj uas tiv thaiv kev thim rov qab ntawm cov dej (tsis rov qab), kuj tseem muab rau kev siv dej lub cev muaj zog. Meanwhile, nyob rau hauv cov kev tshwm sim ntawm qhov sib txawv ntawm lub siab, lub tswb cuav raug tiv thaiv nrog kev muab retard chamber ntawm sab nraud bypass.
Parameter
Tswb Check Valve, Flange Txuas, 3 "mus rau 10"
1) Loj: DN80 / DN100 / DN125 / DN150 / DN200 / DN250
2) Ua haujlwm siab: 1.6MPa / 16bar / 235psi
3) Khoom siv: DI lub cev, stainless hlau rooj thiab clapper, galvanized yeeb nkab, tooj dag accessory li qub
4) Nrog rau tag nrho cov fittings xws li hydraulic tswb tswb, siab hloov, retard chamber thiab lwm yam.
5) Flange qhov sib tw: PN16 / BS4504 / EN1092 / DIN2502 / ANSI150lb
|
Khoom siv |
Ductile Cam khwb cia hlau lub cev, tooj dag rooj |
|
Nominal Dia |
80-250mm/3inch-10inch |
|
Rated Ua Haujlwm Siab |
1.6mpa ua |
|
Muab kaw |
3.2mpa ua |
|
Kev Ntsuas Lub Zog |
6.4mp ua |
|
Tswb Flow (L/min) |
15<> |
|
Lub Sijhawm Tswb Tswb Retard (S) |
5~90 |
|
Kev sib txhuam tsis kam |
Tsawg dua lossis sib npaug rau 0.035mpa |
|
Qauv |
Dej fais fab Check Valve |
|
Nto Finishing |
Painting Liab |
|
Siv Range |
Hluav Taws Sprinkler System |
|
Loj |
DN 80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN 250 |
|
Qhov siab ntawm Alarm Valve (mm) |
248 |
252 |
265 |
355 |
425 |
|
|
Sab nraud txoj kab uas hla ntawm Flange (mm) |
200 |
220 |
250 |
285 |
340 |
405 |
|
Txoj kab uas hla ntawm Opposite Flange Qhov (mm) |
160 |
180 |
210 |
240 |
295 |
355 |
|
Txoj kab uas hla ntawm Flange Qhov (mm) |
18 |
22 |
26 |
|||
|
Qhov ntau ntawm Screw Qhov |
8 |
12 |
||||
Q&A
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom siv hluav taws xob tua hluav taws, peb tau tsim muaj ntau tshaj 30 xyoo
Q: Muaj pes tsawg hom khoom koj lub tuam txhab tsim?
A: Peb lub Hoobkas muaj tsib lub rooj cob qhia ntau lawm, tam sim no nws muaj ntau tshaj 1, 000 hom khoom. Peb lub Hoobkas muaj qhov zoo ntawm OEM, tsuas yog muab peb cov khoom tiag peb tuaj yeem tsim rau koj.
Q: Koj puas tuaj yeem ua peb tus kheej ntim khoom?
A: Yog, koj tsuas yog muab lub pob tsim thiab peb yuav tsim qhov koj xav tau. Peb kuj muaj tus kws tshaj lij tsim qauv tuaj yeem pab koj ua tus tsim ntim.
Q: Koj lub sijhawm xa khoom yog dab tsi?
A: Peb muaj peb tus kheej lub rooj cob qhia, yog li peb tuaj yeem txo cov hnub tsim khoom, FIRE WATER MONITOR yog li ntawm 10-15 hnub
